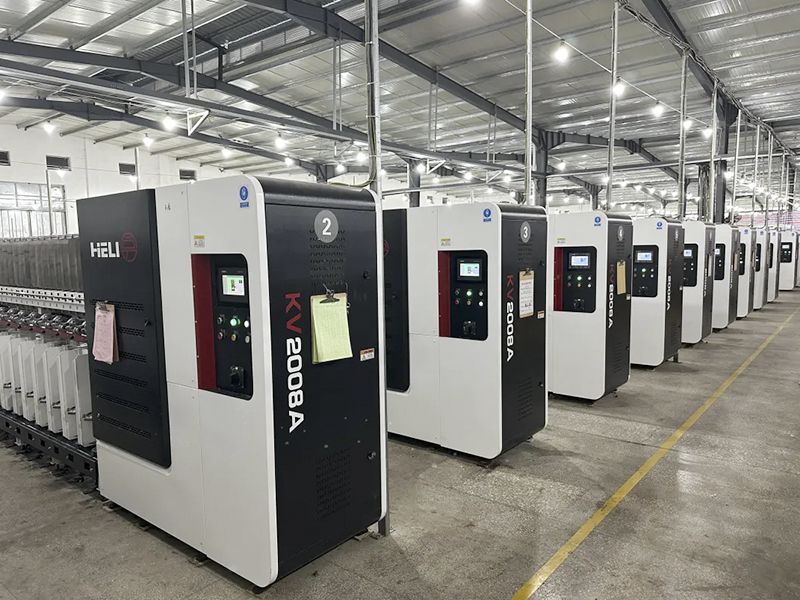

KV2008A TFO+RING TWISTING MACHINE

KV2008A TFO+RING TWISTING MACHINE

KV2008A system is specially designed to meet the requirement of yarn twisting and offers you the following advantages:

※ One row spindle only on the top deck, easy operation for labors.

※ The exclusive active feed roller and top deck with TFO running system result in high-class final yarn and with lower voice, power consumption and production cost.

※ Main configuration from premium brands, e.g. Siemens touch screen & PLC, to keep the machine in a stable state and with a long service life.


The main technical parameters


2X1

3X1

Machine Structure

two decks & two sides

two decks & two sides

Ply count range

50D-1000D

50D-1000D

Yarn count range

100D-2000D

150D-3000D

Supply spindle No. (7 sect.)

252            288

252            288

Take up  spindle No. (7 sect.)

126            144

84             96

Twist direction

S or Z

S or Z

Feed device

Active double feeding roller

Active double feeding roller

Take up spindle speed

5000rpm-7000rpm

5000 rpm-7000rpm

Supply capacity

1000g

1000g

Take up capacity

2000g

2000g-3000g

Overall size

L*W*H= 19330mm×750mm×1930mm

L*W*H= 19330mm×750mm×1930mm
