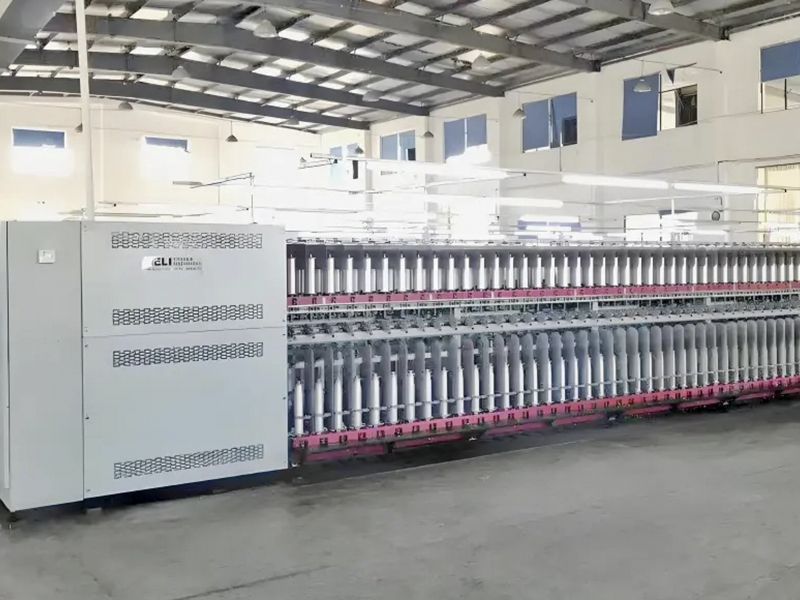

KV2012 NEW COMPOUND TWISTING MACHINE

KV2012 NEW COMPOUND TWISTING MACHINE

KV2012 is with the advantage of extremely high production resulted from the increasing spindle number.

It’s possible to twist thinner filaments in one working process.

Here comes a special function: the machine is available for making both 2 ply and 3ply. There are 3 rows spindles for each side, and the innermost two rows controlled by a separated motor could be stopped by Simens Screen when making 2 ply only for less power consumption.

Main configuration from premium brands, e.g. Siemens touch screen & PLC, is to keep the machine running in a stable state and with a long service life.


The main technical parameters


3X1

Machine Structure

two decks & two sides

Ply count range

40D-300D

Yarn count range

120D-900D

Supply spindle No. (7 sect.)

600

Take up  spindle No. (7 sect.)

200

Twist direction

S or Z

Feed device

Double feeding roller

Take up spindle speed

4500rpm-6000rpm

Supply capacity

700g or 1000g

Take up capacity

2000g

Overall size

L*W*H= 18900mm×1750mm×1850mm
