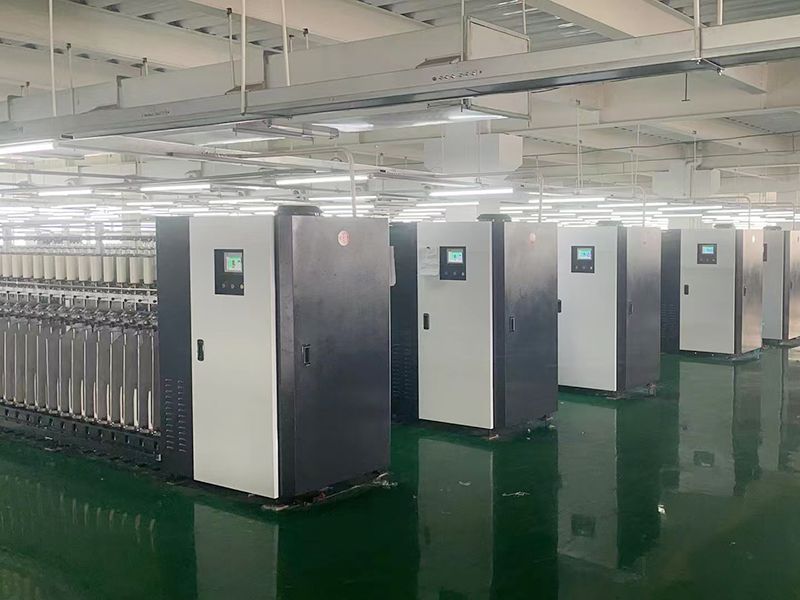

KV2005 HIGH-TECH TWISTING MACHINE

KV2005 HIGH-TECH TWISTING MACHINE

Double sided & decked, with the system of up-twist single thread on the top and down-twist 2 or 3 yarns on the bottom deck.

It’s possible to twist thinner filaments in one working process. e.g. sewing, embroidery, shoes and bags threads.

Main configuration from premium brands, e.g. Siemens touch screen & PLC, to keep the machine in a stable state and with a long service life.

The main technical parameters


2X1

3X1

Machine Structure

two decks & two sides

two decks & two sides

Ply count range

50D-250D

50D-500D

Yarn count range

100D-500D

150D-1500D

Supply spindle No. (7 sect.)

360            400

360

Take up  spindle No. (7 sect.)

180            200

120

Twist direction

S or Z

S or Z

Feed device

Double feeding roller

Double feeding roller

Take up spindle speed

5000rpm-6000rpm

4000rpm-6000rpm

Supply capacity

500g

500g

Take up capacity

1000g

1500g

Overall size

L*W*H= 18540mm×1100mm×1800mm

L*W*H= 18540mm×1100mm×1800mm
