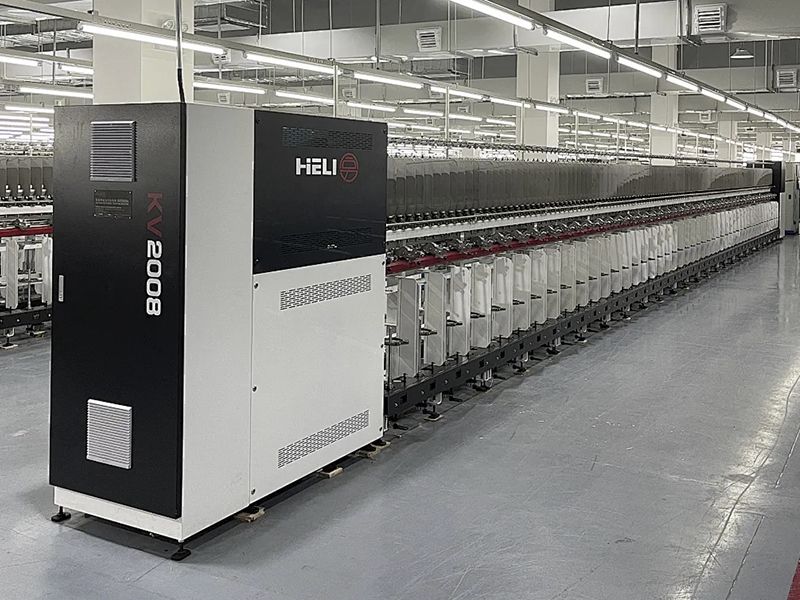

KV2008 AUTOMATIC SPINDLE STOP TWISTING MACHINE

KV2008 AUTOMATIC SPINDLE STOP TWISTING MACHINE

KV2008 system is specially designed to meet the requirement of yarn twisting and offers you the following advantages:

※ One motor per spindle & automatic spindle stop for yarn breakage, no labor needed in production

※ One row spindle only on the top deck, easy operation for labors

※ The exclusive active feed roller and top deck with TFO running system result in high-class final yarn and with lower voice, power consumption and production cost

※ Main configuration from premium brands, e.g. Siemens touch screen & PLC, to keep the machine in a stable state and with a long service life.

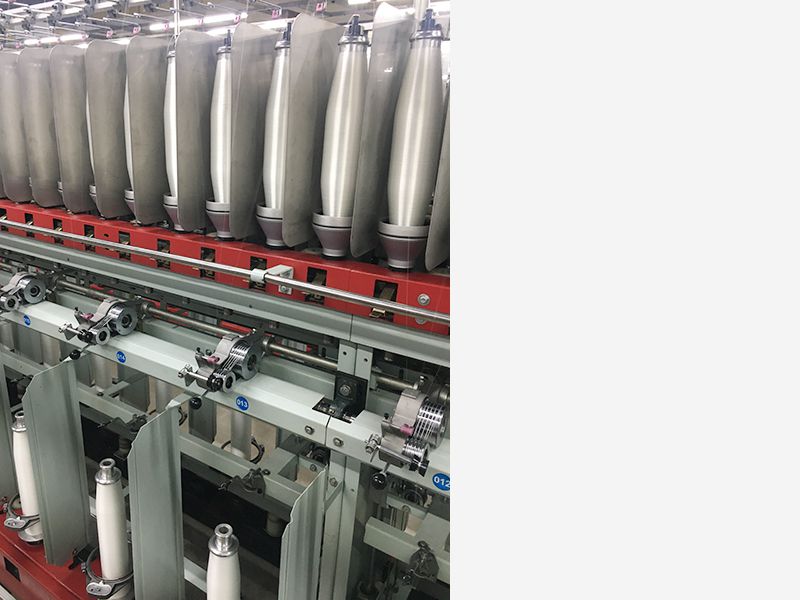

Automatic spindle stop system

The Top deck spindles are driven by tangential belt, while the bottom deck is with single motor per spindle. In case a thread breaks, the relevant spindle stop automatically, and the roller is lifted up simultaneously. No labor is required during production.

The down-twist spindle is with energy-saving synchronous motor, that is adopted to keep the same speed between spindles and guarantee the minimum twist difference to result in the highest quality of final yarn.


The main technical parameters


2X1

3X1

Machine Structure

two decks & two sides

two decks & two sides

Ply count range

50D-1000D

50D-1000D

Yarn count range

100D-2000D

150D-3000D

Supply spindle No. (7 sect.)

252            288

252            288

Take up  spindle No. (7 sect.)

126            144

84             96

Twist direction

S or Z

S or Z

Feed device

Active double feeding roller

Active double feeding roller

Take up spindle speed

5000rpm-7000rpm

5000 rpm-7000rpm

Supply capacity

1000g

1000g

Take up capacity

2000g

2000g-3000g

Overall size

L*W*H= 19330mm×750mm×1930mm

L*W*H= 19330mm×750mm×1930mm
